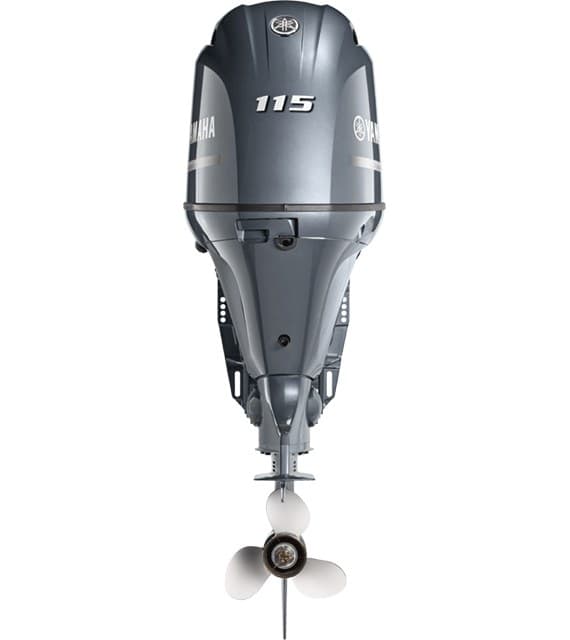

Yamaha F115

Name: Yamaha F115
Brand: Yamaha
SKU: f115
Availability: InStock

Our 1.8-liter Midrange F115 features a double overhead camshaft with four valves per cylinder.

All Yamaha outboards

FourStroke

F115

Power: 115 hp
Configuration: Inline 4
Displacement: 1.8L
Weight: 171 kg (377 lbs) - 175 kg (386 lbs)

Authorized Yamaha

dealer

View on Yamaha site

About this engine

Our 1.8-liter Midrange F115 features a double overhead camshaft with four valves per cylinder. This increases volumetric efficiency and gives the F115 a competitive power to weight.

Key features

Power and Efficiency
Powerful Hole Shot
Optimum Performance
Lightweight, Compact Design
Quick Acceleration
Multi-Function Tiller Handle
Charging Power
Variable Trolling
Extended Engine Life

Full specifications

Weight †: 171 kg (377 lbs) - 175 kg (386 lbs)
Full Throttle RPM Range: 5300 ~ 6300
Fuel Induction System: EFI
Recommended Engine Oil: Yamalube® 4M / (See owner's manual)
Engine Type: Inline 4
Displacement: 1.8L
Bore x Stroke: 81 x 88.9mm |3.19 x 3.5in
Prop Shaft Horsepower: 115hp at 5500 rpm
Alternator Output at W.O.T.: 35 Amp
Compression Ratio: 10.0:1
Recommended Fuel: Octane 87
Recommended Fuel Filtration: Yamaha 10-Micron Fuel / Water Separating Filter (external)
C.A.R.B. Rating: 3-Star
Exhaust: Through Propeller
Intake: 16
Ignition: TCI Microcomputer
Spark Plug: LKR6E
Starting System: Electric
Lubrication: Wet Sump
Engine Oil Capacity: 3.2/3.0L
Recommended Cooling: Thermostatic Control
Ethanol Blend Limit: 10% Maximum
Gear Ratio: 2.15:1
Gear Shift: Forward, Neutral, Reverse
Shaft Length: 20" - 25"
Degree of Tilt: 70°
Degree of Trim: -4° through +16°
Mounting Centers: 26"
Steering Angle (maximum): 35° from center, either direction
Warranty: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
