Yamaha F4
Our 139-cc 4-hp portable outboard mirrors our OHV F6, with a couple less horses.
FourStroke
F4
- Power
- 4 hp
- Configuration
- 1 cyl
- Displacement
- 139cc
- Weight
- 27 kg (60 lbs) - 28 kg (61 lbs)
dealerAbout this engine
Our 139-cc 4-hp portable outboard mirrors our OHV F6, with a couple less horses. It features the same ergonomic, easy-grip starter handle with a built-in decompression device for effortless starts. The F4 also features a built-in fuel tank with the option of switchable access to an additional external tank for amazing extended range. There’s no stopping this little brute.
Key features
- Lightweight, Portable Power
- Surprising Performance
- Record Setting Fuel Efficiency
- EASY STORAGE
- COMFORTABLE CONTROL
- PORTABILITY AND STORAGE
Full specifications
- Weight †
- 27 kg (60 lbs) - 28 kg (61 lbs)
- Full Throttle RPM Range
- 4000 ~ 5000
- Fuel Induction System
- Carb
- Recommended Engine Oil
- Yamalube® 4M (See owner's manual)
- Engine Type
- 1 cyl
- Displacement
- 139cc
- Bore x Stroke
- 62 x 46mm (2.44 x 1.81in)
- Prop Shaft Horsepower
- 4hp at 4500 rpm
- Alternator Output at W.O.T.
- 6 Amp
- Compression Ratio
- 8.9:1
- Recommended Fuel
- Octane 87
- Recommended Fuel Filtration
- N/A
- C.A.R.B. Rating
- 3-Star
- Exhaust
- Above Propeller
- Intake
- 2
- Ignition
- CDI
- Spark Plug
- CR6HSB
- Starting System
- Manual
- Lubrication
- Wet Sump
- Engine Oil Capacity
- 0.6L
- Recommended Cooling
- Thermostatic Control
- Ethanol Blend Limit
- 10% Maximum
- Gear Ratio
- 2.08:1
- Gear Shift
- Forward, Neutral, Reverse
- Shaft Length
- 15" - 20"
- Degree of Tilt
- 69°
- Degree of Trim
- -4° through +16°
- Mounting Centers
- N/A
- Steering Angle (maximum)
- 90° from center, either direction
- Warranty
- Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
More from Yamaha
FourStroke

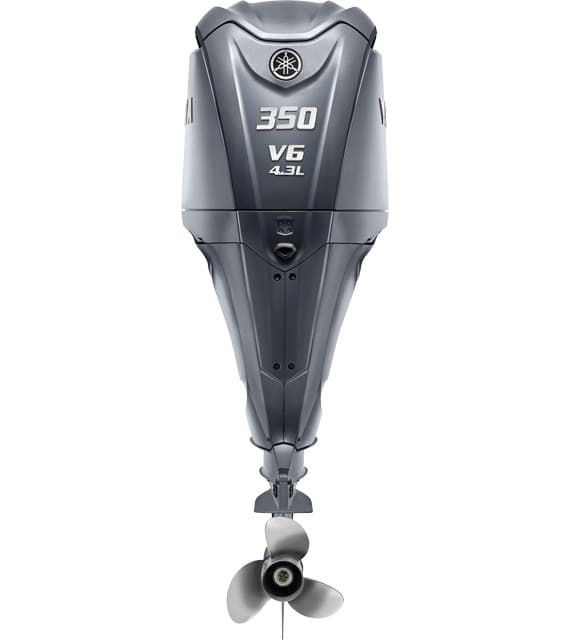

F350
286 kg (629 lbs) / 291 kg (642 lbs) / 296 kg (653 lbs)
FourStroke
F300
250 kg (551 lbs) / 254 kg (562 lbs) / 265 kg (588 lbs)
FourStroke

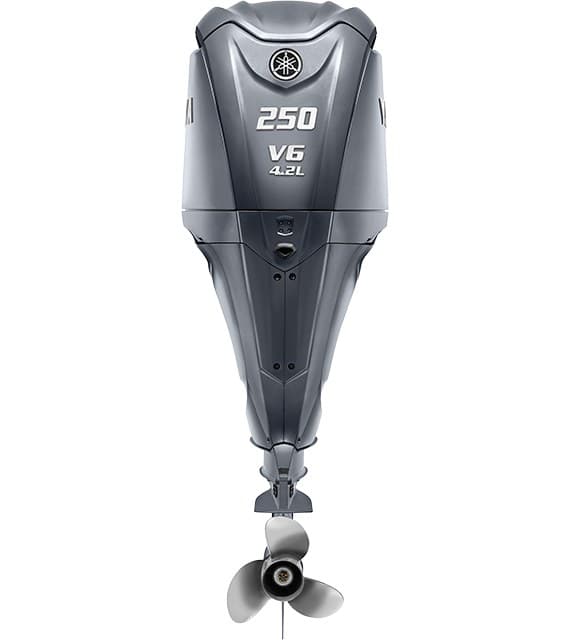

F250
250 kg (551 lbs) / 254 kg (562 lbs) / 265 kg (588 lbs)
FourStroke
F225
250 kg (551 lbs) - 254 kg (562 lbs)
FourStroke

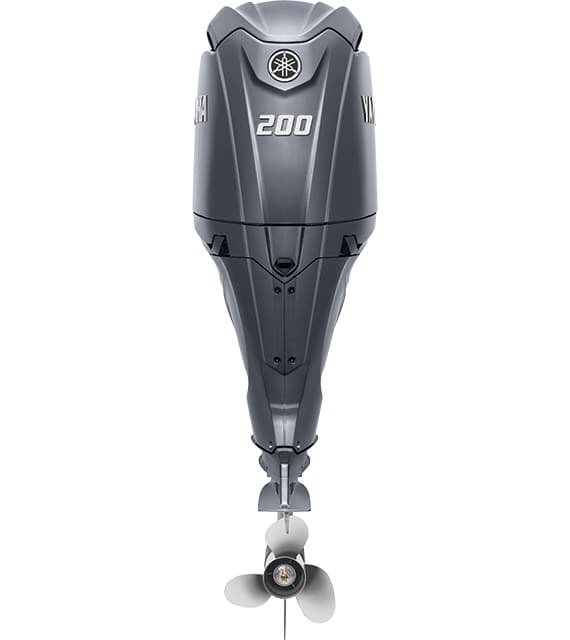

F200
Mechanical - 234 kg (516 lbs) / DEC - 238 kg (525 lb)
FourStroke

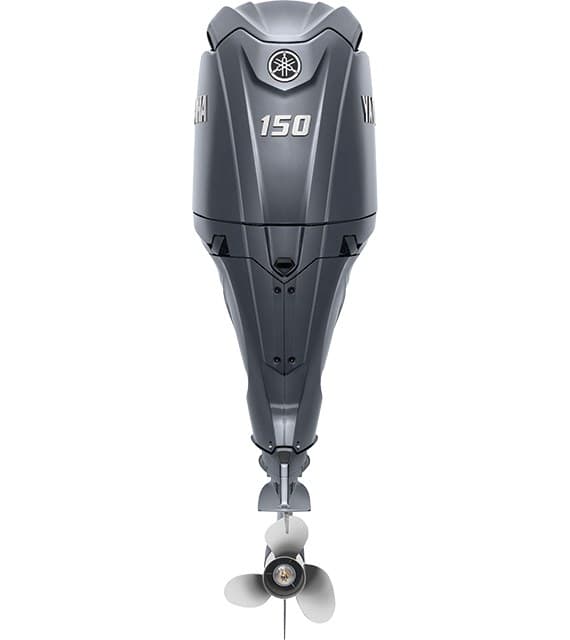

F150
20” Mechanical 231kg (509 lbs) 20” DEC 237kg (522 lbs)
FourStroke

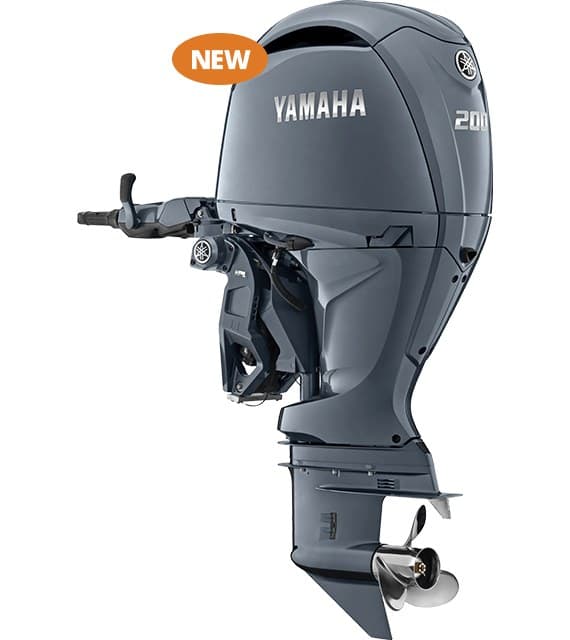

F200 Tiller
258 kg (568 lbs)
FourStroke
F150 Tiller
257 kg (566 lbs)
FourStroke

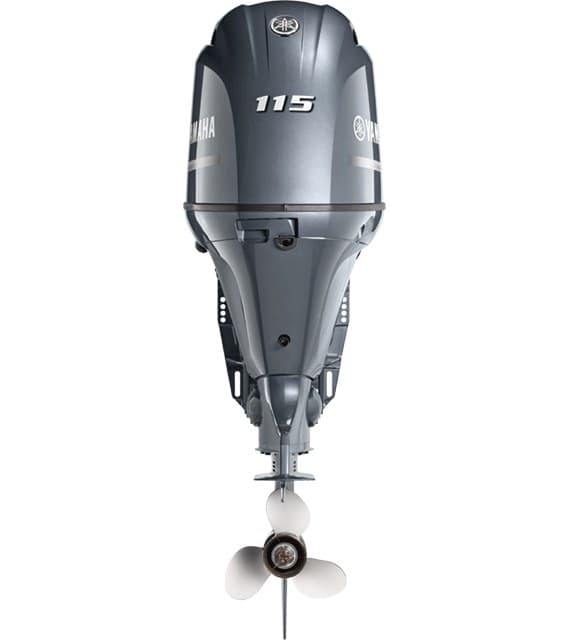

F115
171 kg (377 lbs) - 175 kg (386 lbs)
FourStroke

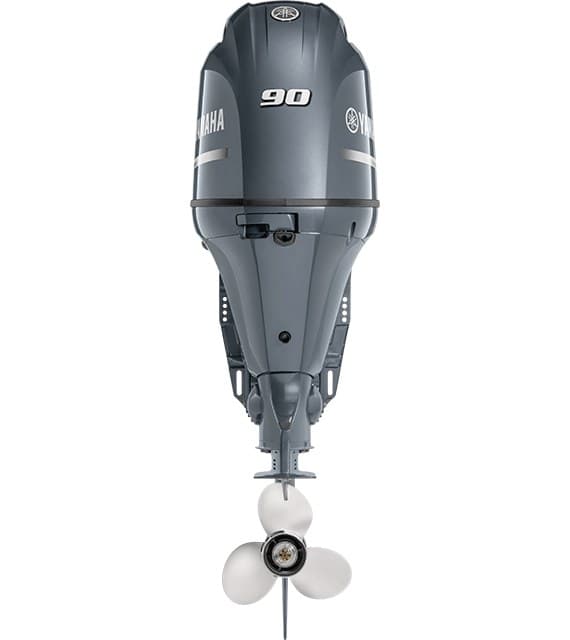

F90
160kg (353 lbs) - 164kg (362 lbs)
FourStroke

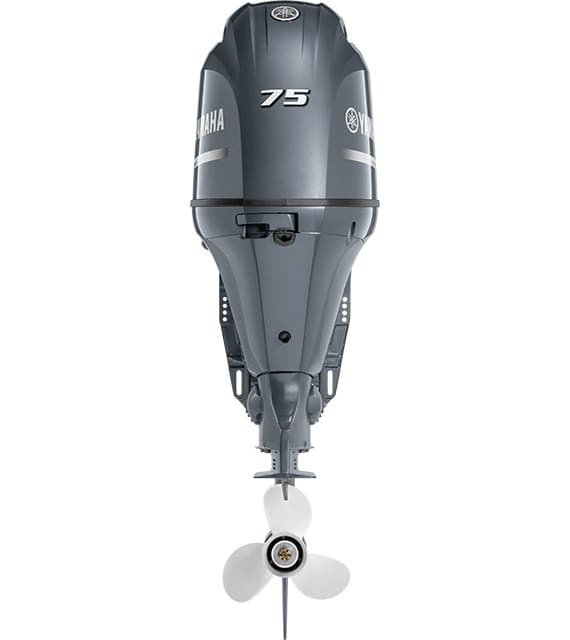

F75
160 kg (353 lbs)
FourStroke

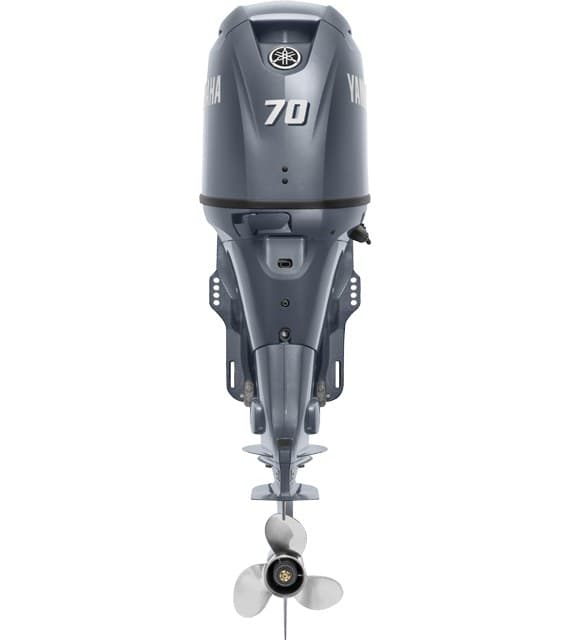

F70
114 kg (253 lbs)
FourStroke
F60
112 kg (247 lbs)
FourStroke
F50
112 kg (247 lbs)
FourStroke
F40
97 kg (214 lbs) - 101kg (223 lbs)
FourStroke
F30
97 kg (214 lbs) - 101kg (223 lbs)
FourStroke

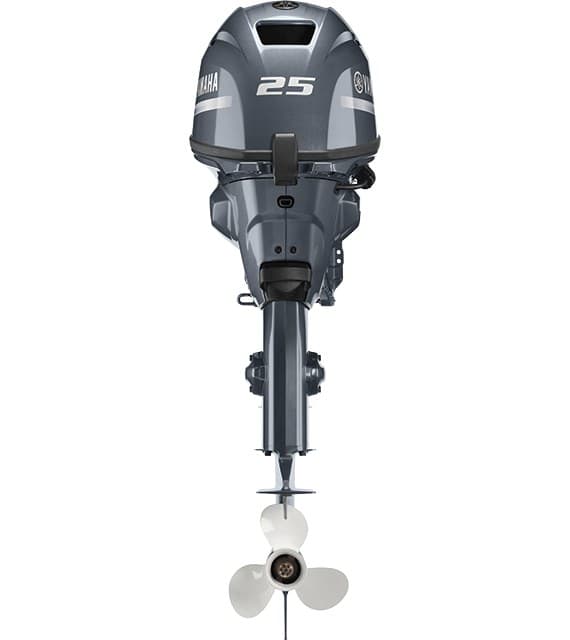

F25
57kg (126 lbs) - 65kg (143 lbs)
FourStroke

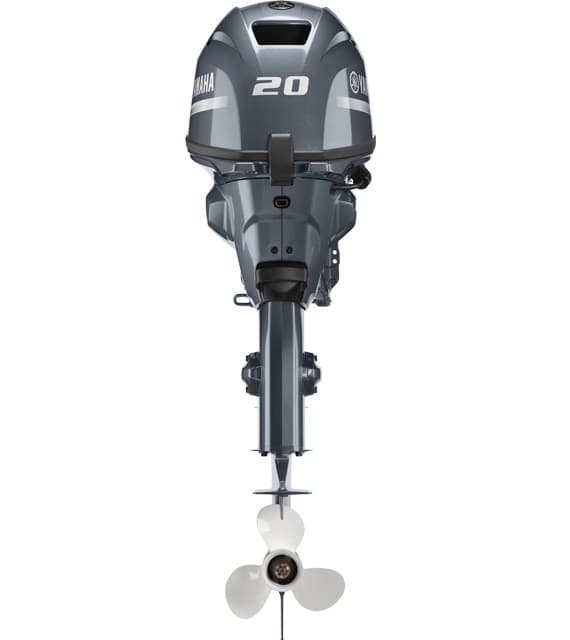

F20
57 kg (126 lbs) - 66 kg (146 lbs)
FourStroke

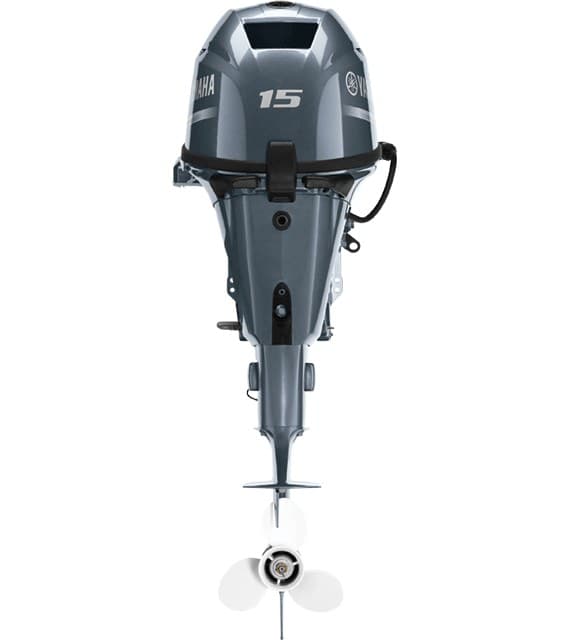

F15
